X-ray Detector Insertion Aid

Project Summary

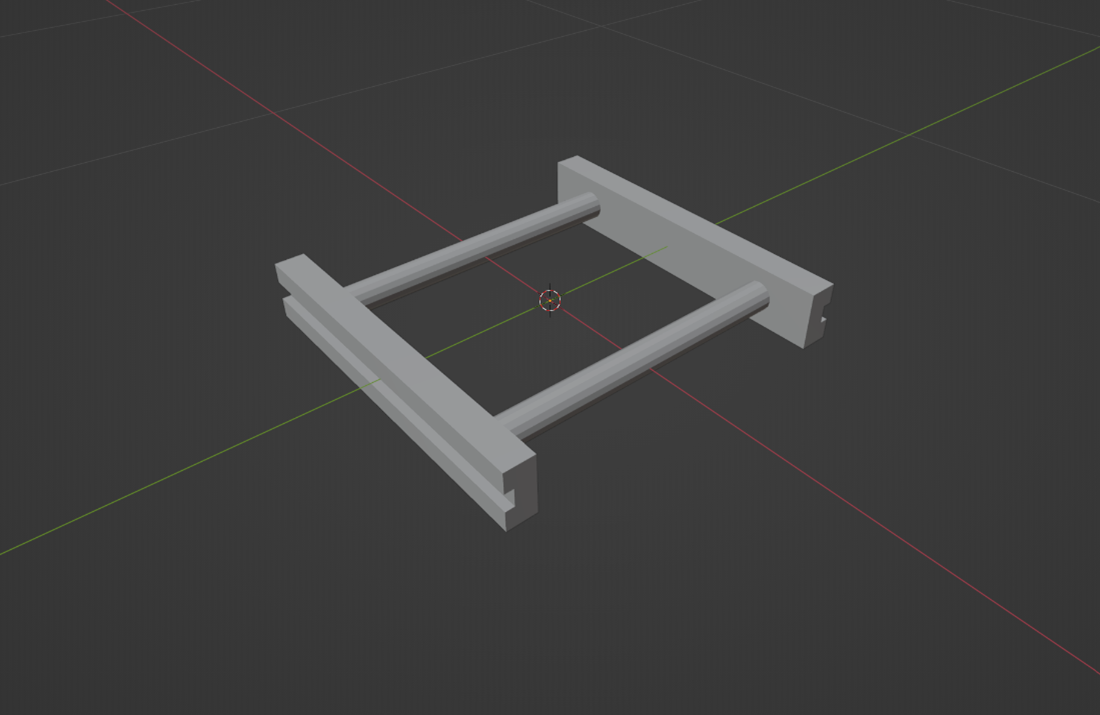

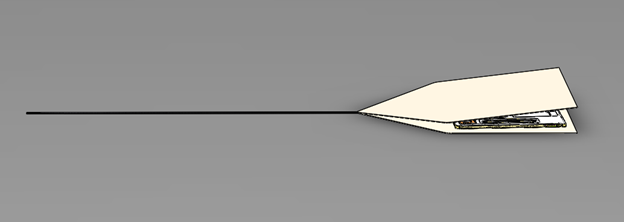

In order for an X-ray to be taken of a patient’s torso using a mobile X-ray machine, an X-ray detection plate must be put under the patient’s torso. This is most commonly done by having one or two technicians lift the patient into a sitting position while another technician places the detector under the patient. This can be very difficult and potentially dangerous to both the patient and the technician depending on the patient’s weight. The wedge design makes it possible for a single technician to get the X-ray detection plate quickly and safely under the patient with ease.

Design Goal

To design a solution or device that allows a single technician, using minimal effort, to place an X-ray detector plate underneath the torso of an immobile patient quickly, safely, and efficiently.

Design Constraints

• Production Cost: Target <$0.50 per use preferred (can be re-usable or single use)
• Apparatus Weight: <5 lbs.
• Power Requirements: Optional - 120V power is available (not required)
• Time to insert detector < 1 minute
• Requires only 1 person to complete the action
• Force required to insert Detector is <20 lbs.
• Works with patients up to 300 lbs. who are immobile
• Focus is Chest X-Rays – must work when patient is lying flat or inclined up to 20 degrees
